JC660 Integrated Hydraulic DTH Drilling Rig For Open Pit Mining And Quarry Blasting

Name: JC660 Integrated Hydraulic DTH Drilling Rig For Open Pit Mining And Quarry Blasting
Brand: Beijing Jincheng Mining Technology Co., Ltd.
SKU: JC660
Price: 17,506.00 USD
Availability: InStock

Nama merek:	JCDRILL
Nomor Model:	JC660
Moq:	1
harga:	Dapat dinegosiasikan
Ketentuan Pembayaran:	L/C, D/A, D/P, T/T, Western Union

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Beijing

Sertifikasi:

Menyoroti:

hydraulic DTH drilling rig

open pit mining drilling rig

quarry blasting rock drill

Deskripsi Produk

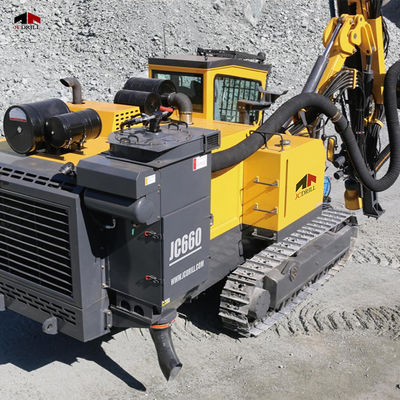

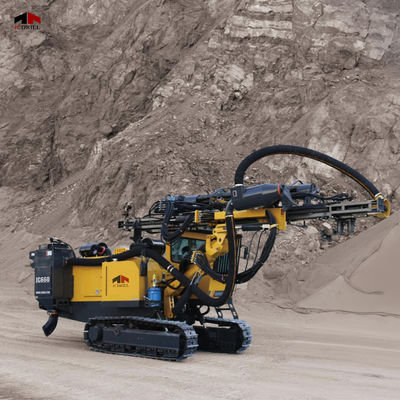

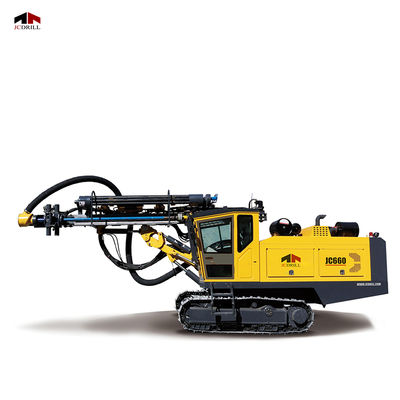

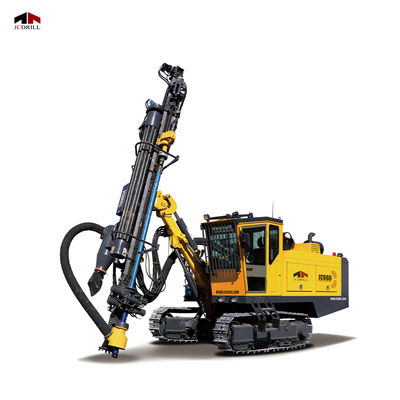

JC660 Integrated Hydraulic DTH Drilling Rig For Open Pit Mining And Quarry Blasting

Efficient • Energy-Saving • Environment-Friendly

The JC660 integrated hydraulic DTH drilling rig is a high-performance machine designed for open-pit mining, quarrying, and construction drilling. It can drill blast holes from 90 mm to 140 mm in diameter.

Equipped with an imported BSC (USA) two-stage screw air compressor, the JC660 ensures stable pressure and airflow, achieving high penetration speed with reduced energy consumption. Its main structure uses Q345 high-strength steel for exceptional durability under harsh conditions.

Key Features

Automatic Rod-Changer: Fully automatic system stores 5+1 drill rods, supports 3m or 4m rods for 18m-24m drilling depth, simple and reliable.
Strong Mobility & Stability: Doosan walking motor with 350mm widened tracks, hydraulic leveling system for rough terrains.
Robust Rotary Head: Shock absorber reduces vibration, extends service life, and provides strong torque for various rock conditions.

Technical Specifications

Model	JC660
Drilling Diameter	90-140 mm
Drill Rod Size	76 mm × 4000 mm
Rotation Speed	0-140 rpm
Rotation Torque	2100 N*m
Feed Force	17 kN
Feed Speed	30 m/min
Air Compressor	BSC (Imported from USA)
F.A.D	15 m³/min
Air Pressure	18 bar
Engine Manufacturer	YUCHAI
Engine Power	191 kW
Dimensions (L × W × H)	10,000 × 2,800 × 3,300 mm
Weight	13,000 kg

The JC660 integrates power, precision, and efficiency. Its durable design and intelligent rod-handling system make it ideal for open-pit mining and quarrying operations seeking maximum productivity and minimal costs.
