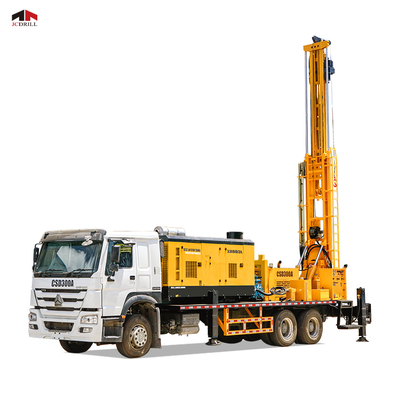

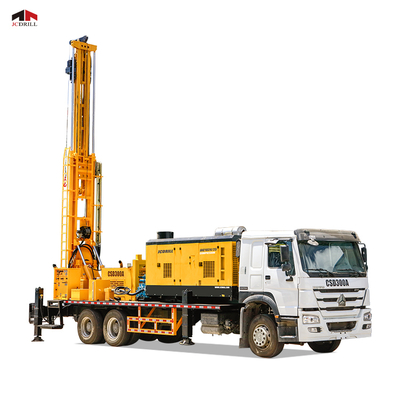

93KW Truck Mounted Water Well Drilling Rig 300m Depth

Nama

93KW Truck Mounted Water Well Drilling Rig 300m Depth

Nama merek:	JCDRILL
Nomor Model:	CSD300A 6x4
Moq:	1 set
harga:	Negotation
Ketentuan Pembayaran:	L/C, T/T, Western Union
Kemampuan Penyediaan:	2000 set per tahun

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

ISO9001

Jenis:

Rig Pengeboran Sumur Air Truk 6 x 4 dengan Kompresor Udara

Kedalaman pengeboran:

300m

Diameter pengeboran:

140-450mm

Metode pengeboran:

Rotary Lumpur dan DTH Udara

Jaminan:

Setahun

Panjang pipa bor:

3m /4,5m

Diameter pipa bor:

89/102 /114mm

tipe daya:

Diesel

Penggunaan:

Air sumur

Nama Produk:

Rig Pengeboran Sumur Air Truk Gabungan

Kondisi:

Baru

Kekuatan (w):

93kw

Kemasan rincian:

Kapal curah dan wadah 20GP

Menyediakan kemampuan:

2000 set per tahun

Menyoroti:

300m depth water well drilling rig

,

93KW truck mounted drilling rig

,

heavy duty water well rig

Deskripsi Produk

Well Hydraulic 93kw Truck Mounted Water Drilling Rig For Agriculture

Product Specifications

Attribute	Value
Type	6 x 4 Truck Water Well Drilling Rig with Air Compressor
Drilling Depth	300m
Drilling Diameter	140-450mm
Drilling Method	Mud Rotary and Air DTH
Warranty	One Year
Drill Pipe Length	3m /4.5m
Drill Pipe diameter	89 / 102 /114mm
Power type	Diesel
Usage	Water Well
Product name	Combined Truck Water Well Drilling Rig
Condition	New
Power(w)	93KW

Technical Specifications

Item	Parameter	Value
1	Geology drilled	All kinds
2	Drilling Type	DTH & Mud Rotary
3	Drill system and operation	Hydraulic
4	Hole Diameter	Φ140--Φ450 mm
5	Hole Depth	300 m
6	Rotation Torque	3200 Nm (1st Gear) 4500 Nm (2nd Gear)
7	Rotation Speed	0-80 rpm (1st Gear) 0-100 rpm (2nd Gear)
8	Drill pipe diameter	76/89/102/114 mm
9	Drill pipe length	3000 mm
10	Max. Lifting force	10000 N
11	Max. Feed Speed	18 m/min

Winch Specifications

Item	Parameter	Value
12	Lifting force of Main winch(Optional)	4 T
13	Lifting force of hoist	0.8 T
14	Length of steel wire rope(tool winch)	100 m
15	Lifting height of tool winch	8 m

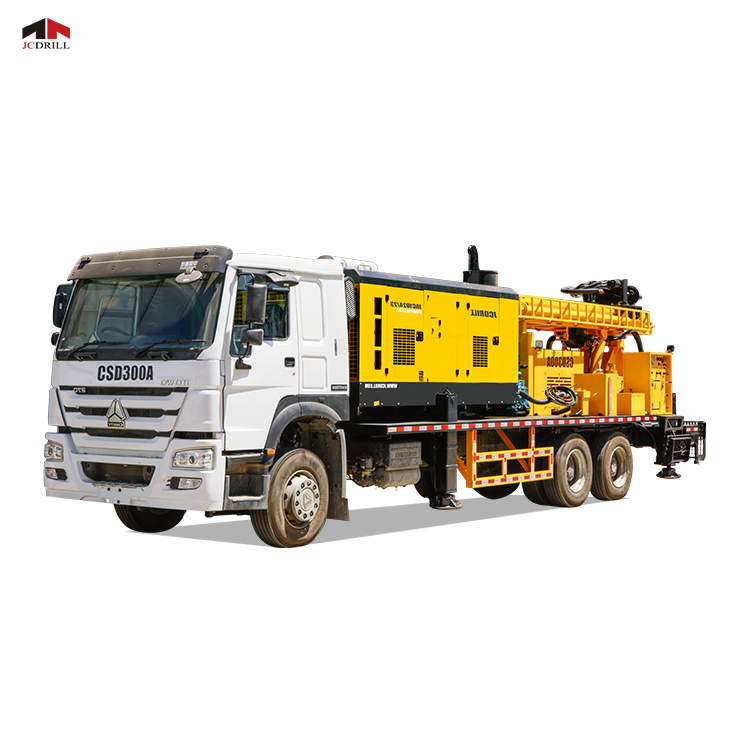

93KW Truck Mounted Water Well Drilling Rig 300m Depth 0

Applications

CSD300A is a new, efficient, multifunctional hydraulic truck mounted telescoping mast well drilling rig, mainly applicable to:

Drilling process of water wells
Monitoring wells
Geothermal wells

Key Features

Dual drilling capability: air DTH Hammer drilling and mud drilling
Centralized control console for efficient operation
6X4 special crane chassis from SINOTRUK HOWO
Hydraulic rotary drilling rig with directional circulation
Powered by Yuchai engine (92kw) with stable performance
Rotary head with stepless speed adjustment (0-102rpm)
Regulable pulling force for deep hole drilling
Optional generator for welding or night work illumination
Main winch for high efficiency drilling
Hydraulic controlled four landing legs and drilling tower
Air compressor mounted on the drilling machine
Competitive pricing with low maintenance cost

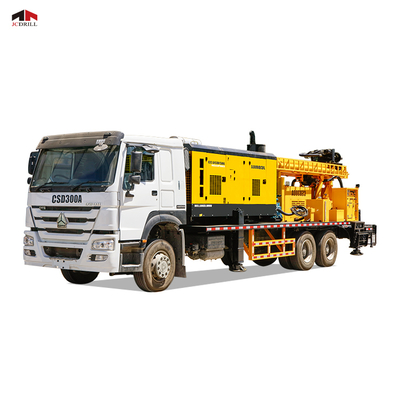

93KW Truck Mounted Water Well Drilling Rig 300m Depth 1

After-Sales Service

Our comprehensive after-sales service system includes:

ISO-9000 compliant control system
Technical data and problem-solving solutions
OEM spare parts with installation instructions
Manufacturer's documentation and warranty certificate
Lifetime service commitment from order confirmation
