Detail produk:
|
| Nama Bagian: | Mata Bor RC | Merek: | JCDRILL |
|---|---|---|---|
| Warna: | Disesuaikan | Kunjungan Pabrik: | Dukung |
| Pesanan Sampel: | Dukung | Pemakaian: | Pengeboran lubang |
| Cahaya Tinggi: | mata bor dth sirkulasi balik,mata bor dth rc,mata bor dth 213mm |
||

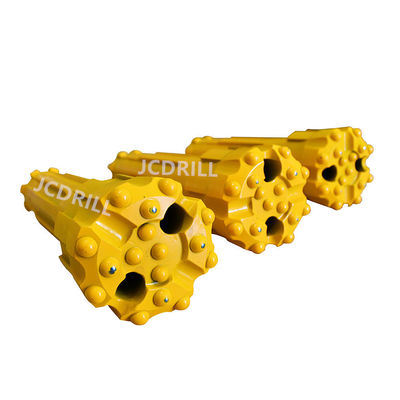

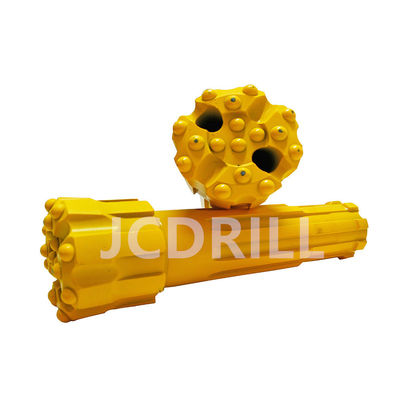

RC Reverse Circulation Drilling Bits untuk pengeboran
Spesifikasi
| Spesifikasi | Bentuk Kepala | Diameter Kepala (mm) | Panjang Shank | Spline | Lubang Pelabuhan | Berat (Kg) | |
| RE004 | RE004-115 | Wajah Drop-Center | 115 | 271 | 8 | 2 | 11.5 |
| RE004-121 | Wajah Drop-Center | 121 | 271 | 8 | 2 | 12.1 | |
| RE004-124 | Wajah Drop-Center | 124 | 271 | 8 | 2 | 12.3 | |
| RE004-127 | Wajah Drop-Center | 127 | 271 | 8 | 2 | 12.5 | |
| RE542 | RE542-121 | Wajah Drop-Center | 121 | 225 | 8 | 2 | 10.7 |
| RE542-124 | Wajah Drop-Center | 124 | 225 | 8 | 2 | 11 | |
| RE542-127 | Wajah Drop-Center | 127 | 225 | 8 | 2 | 11.2 | |
| RE542-133 | Wajah Drop-Center | 133 | 225 | 8 | 2 | 11.4 | |
| PR52 | PR52-133 | Wajah Drop-Center | 133 | 282 | 8 | 2 | 16,5 |
| PR52-136 | Wajah Drop-Center | 136 | 282 | 8 | 2 | 16.7 | |
| PR52-140 | Wajah Drop-Center | 140 | 282 | 8 | 2 | 16.9 | |
| PR52-143 | Wajah Drop-Center | 143 | 282 | 8 | 2 | 17.1 | |
| PR54R | PR54R-136 | Wajah Drop-Center | 136 | 261 | 8 | 2 | 18.3 |
| PR54R-140 | Wajah Drop-Center | 140 | 261 | 8 | 2 | 18.5 | |
| PR54R-143 | Wajah Drop-Center | 143 | 261 | 8 | 2 | 18.7 | |
| PR54R-146 | Wajah Drop-Center | 146 | 261 | 8 | 2 | 18.9 | |
| PR54R-165 | Wajah Drop-Center | 165 | 261 | 8 | 2 | 21 | |
| PR54R-178 | Wajah Drop-Center | 178 | 261 | 8 | 2 | 22.5 | |
Sertifikasi
fitur
1) Desain wajah: datar, cembung, cekung
2) Desain sisipan: bulat, balistik, parabola
3) Dirancang untuk bekerja dengan palu RC
4) Diameter bit: 90mm hingga 213mm
5) Kualitas yang dapat diandalkan
6) umur panjang
7) Efek pembilasan halus
