Detail produk:
|
| Tipe: | TABUNG CASING | Ukuran: | BQ NQ HQ PQ |
|---|---|---|---|
| Warna: | Hitam | Aplikasi: | Diamond Core Drilling |
| Bahan: | 30 CrMnSia XJY850 | Standar: | Boart Longyear |
| Paket: | peti kayu | Panjangnya: | 1-3 m |
| Cahaya Tinggi: | batang bor wireline,alat pengeboran inti |
||

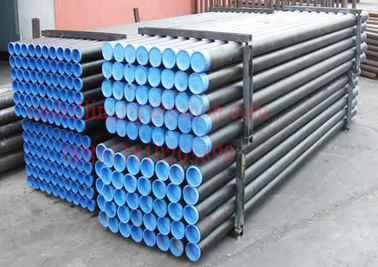

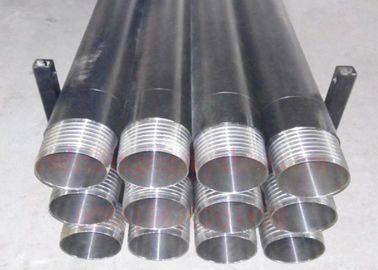

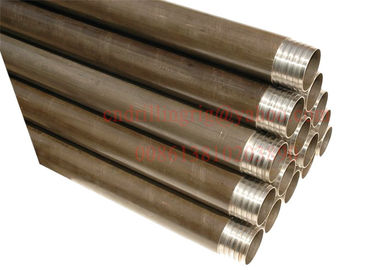

NW HW HWT Wireline Casing Pipe Core Drilling Casing Tube 3m 1,5m
</s> </s> </s> </s> </s> </s> </s> </s> </s> </s> </s> </s> </s> </s> </s> </s> </s> </s> </s> </s> </s> </s> </s> </s> </s> </s> orang </s>Karakteristik
1. Tabung casing NW HW PW kami memiliki kualitas terbaik, diproduksi sesuai spesifikasi menggunakan teknologi maching yang maju.
2. Mereka dibuat dari tabung baja mulus dengan ditarik dingin. Bahannya adalah XJY850 / 30CrMnSiA yang memenuhi standar global.
3. Batang bor dibuat dari bahan yang diberi perlakuan panas berkualitas yang memastikan kekuatan, ketahanan aus, dan ketangguhan yang unggul dalam aplikasi yang paling menuntut
4. Batang dan selubung diproduksi di bawah standar industri yang ketat, dan diuji di lapangan dalam berbagai kondisi.
5. Semua batang dirancang agar kompatibel dengan batang lain yang diproduksi dengan DCDMA standar
Aplikasi
Batang ulir Q adalah pilihan tak terbantahkan di seluruh dunia untuk batang bor coring kabel.
2. Tubuh tabung panas melalui dinding
3. konsentrisitas yang konsisten, kelurusan
4. benang meruncing
TABUNG
• Tabung baja paduan berkualitas tinggi
• Konsentrisitas, kelurusan, dan perlakuan panas yang konsisten
• Semua tubing tersedia dalam ukuran DCDMA
BENANG
• Benang jalur meruncing (3 utas per inci) memudahkan pembuatan dan pemutusan
• Efisiensi beban 30% memberikan kekuatan yang cukup untuk aplikasi rata-rata
PERAWATAN PANAS THRU-DINDING
• Memberikan 140% kekuatan material
• Benang kotak yang diberi perlakuan panas secara signifikan meningkatkan umur keausan benang
PENGERASAN KASUS
• Penelitian, pengembangan, dan pengujian lapangan yang signifikan telah menghasilkan proses pengerasan yang tidak tertandingi di pasar
• Puncak ulir pin diperkeras hingga nominal 55 HRc untuk menghilangkan keausan 'adhesi' yang merusak
• Menghilangkan transfer bahan aus bolak-balik yang terjadi antara benang dengan kekerasan yang sama, yang menyebabkan gesekan berskala besar dan perampasan sambungan
Spesifikasi
| Nomor Casing W. | ||||||
| Std | OD (mm) | ID (mm) | Ketebalan dinding | Pitch Benang | Pin Thread Panjang | Bobot |
| (mm) | (mm) | (mm) | (kg / m) | |||
| AW | 57.2 | 48.4 | 4.4 | 6.35 | 57.2 | 5.73 |
| BW | 73 | 61 | 6 | 6.35 | 63.5 | 10.51 |
| NW | 88.9 | 76.2 | 6.35 | 6.35 | 69.9 | 12.92 |
| NWA | 91 | 80 | 5.5 | 6 | 72 | 11.59 |
| HW | 114.3 | 101.6 | 6.35 | 6.35 | 76.2 | 16.9 |
| PW | 139.7 | 127 | 6.35 | 8.47 | 82.6 | 20.87 |
| Nomor Casing WT | ||||||
| Std | OD (mm) | ID (mm) | Ketebalan dinding | Pitch Benang | Pin Thread Panjang | Bobot |
| (mm) | (mm) | (mm) | (kg / m) | |||
| HWT | 114.3 | 101.6 | 6.35 | 10.16 | 62.74 | 16.9 |
| PWT | 139.7 | 127 | 6.35 | 10.16 | 62.74 | 20.87 |
Pengepakan & Pengiriman
Layanan
Dalam sistem layanan purna jual kami, Kami membangun sistem kontrol yang sempurna secara ketat sesuai dengan seri ISO-9000, dalam sistem ini, tanggal teknologi dan solusi penyelesaian masalah dan tindakan pencegahan akan disediakan dalam setiap proyek perawatan, semua suku cadang akan digunakan dalam kondisi baru. Produk OEM dengan petunjuk pemasangan, daftar pengepakan, instruksi pabrik, kualifikasi dan sertifikat Garansi.
Kami menyediakan "satu peralatan & satu kasus, layanan tanpa akhir, yaitu layanan purna jual mulai dari konfirmasi pesanan, terakhir untuk masa pakai peralatan.
